Home / All / Dry Coolers / BOYI customized Ø15.88 copper tube aluminium fin heat exchange coils for Dry Cooler

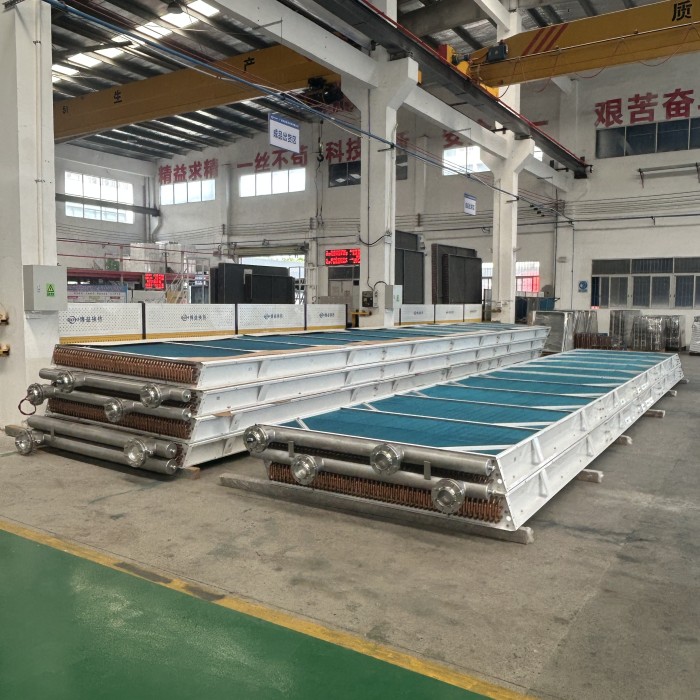

BOYI customized Ø15.88 copper tube aluminium fin heat exchange coils for Dry Cooler
| Share | |
|---|---|
| Categories | Dry Coolers |
| Brand | Boyi Heat Exchanger Custom Manufacturing |
| Model | V-type Dry Cooler |
| Core Component | Finned Tube Heat Exchanger |
| Tube Diameter | 7mm, 9.52mm, 12.7mm, 15.88mm |
| Casing Material | Galvanized Sheet, Aluminium, Stainless Steel |
| Tube Material | Copper, Stainless Steel |
| Fin Material | Aluminum, Copper, Stainless Steel |
| FOB port | guangzhou |
| Terms of Payment | L/C, D/P, Western Union, MoneyGram, T/T, Paypal |
| Download |  |
Detail Information
BOYI customized Ø15.88 copper tube aluminium fin heat exchange coils for Dry Cooler
This customized 6 Rows 52 Holes 11400mmL copper tube aluminium fin heat exchange coils is provided for Dry Cooler.
The core construction uses 5/8" Ø15.88*0.38mm Copper Tubes and 0.115mm Hydrophilic Corrugated Aluminum Fins (FPI 2.1mm). Additionally, the Frames are manufactured out of 3.0mm thick Galvanized Steel Sheet, 4.0mm thick 304 stainless steel manifold.
Main Features:
1. No cooling water consumption, completely dry operation, no water pollution, no sewage discharge.
2. Low operation cost, simple maintenance and long service life.
3. Stable performance, suitable for various industrial working conditions and outdoor installation.
4. Energy-saving and low noise, environmentally friendly and energy-efficient.
5. Widely used in data centers, industrial refrigeration, HVAC central air conditioning, photovoltaic energy storage, injection molding machinery, laser equipment, chemical industry and other cooling fields.
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
