2.5MW Stainless Steel Tube V-type Dry Cooler for Mining Field
| Share | |
|---|---|
| Categories | Dry Coolers |
| Trademark/Brand | Boyi Heat Exchanger Custom Manufacturing |
| Model | V-type Dry Cooler |
| Core Component | Finned Tube Heat Exchanger |
| Tube Diameter | 7mm, 9.52mm, 12.7mm, 15.88mm |
| Casing Material | Galvanized Sheet, Aluminium, Stainless Steel |
| Tube Material | Copper, Stainless Steel |
| Fin Material | Aluminum, Copper, Stainless Steel |
| FOB port | guangzhou |
| Terms of Payment | L/C, D/P, Western Union, MoneyGram, T/T, Paypal |
| Download |  |
| Update Time | Dec 9,2025 |
Detail Information

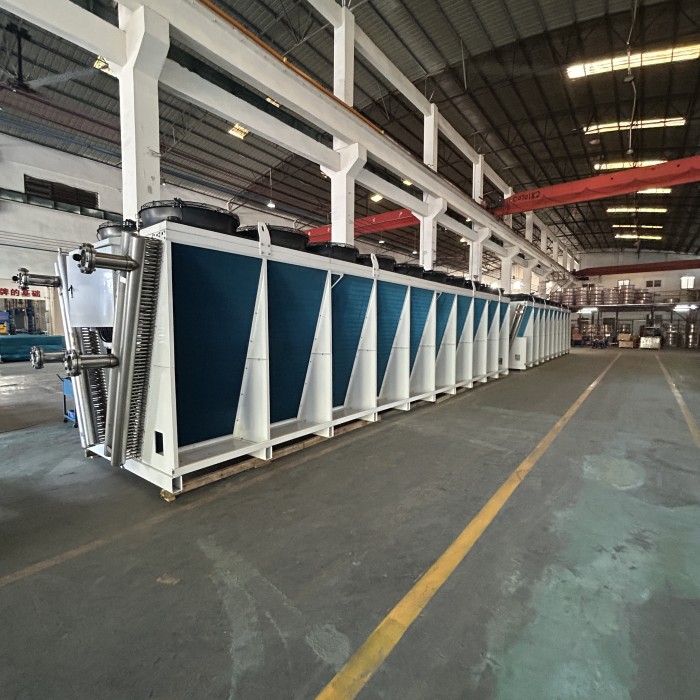

2.5MW Stainless Steel Tube V-type Dry Cooler for Mining Field
This Customized 6 Rows 60 Holes V-type Dry Cooler with 20 AC Fans is provided for Mining Field.
The core construction uses 5/8" Ø15.88*0.65mm Stainless Steel Tubes and 0.115mm Hydrophilic Corrugated Aluminum Fins (FPI 2.1mm). Additionally, the Frames are manufactured out of 3.0mm thick Painted Steel Plate, the mounting brackets and wind panels are constructed using 3.0mm thick outdoor Painted Steel Plate.
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
