550KW Copper Tube V-type Dry Cooler for Data Center Cooling
| Categories | Dry Coolers |
|---|---|
| Trademark/Brand | Boyi Heat Exchanger Custom Manufacturing |
| Model | V-type Dry Cooler |
| Core Component | Finned Tube Heat Exchanger |
| Tube Diameter | 7mm, 9.52mm, 12.7mm, 15.88mm |
| Casing Material | Galvanized Sheet, Aluminium, Stainless Steel |
| Tube Material | Copper, Stainless Steel |
| Fin Material | Aluminum, Copper, Stainless Steel |
| FOB port | guangzhou |
| Terms of Payment | L/C, D/P, Western Union, MoneyGram, T/T, Paypal |
| Download |  |
| Update Time | Nov 17,2025 |
Detail Information

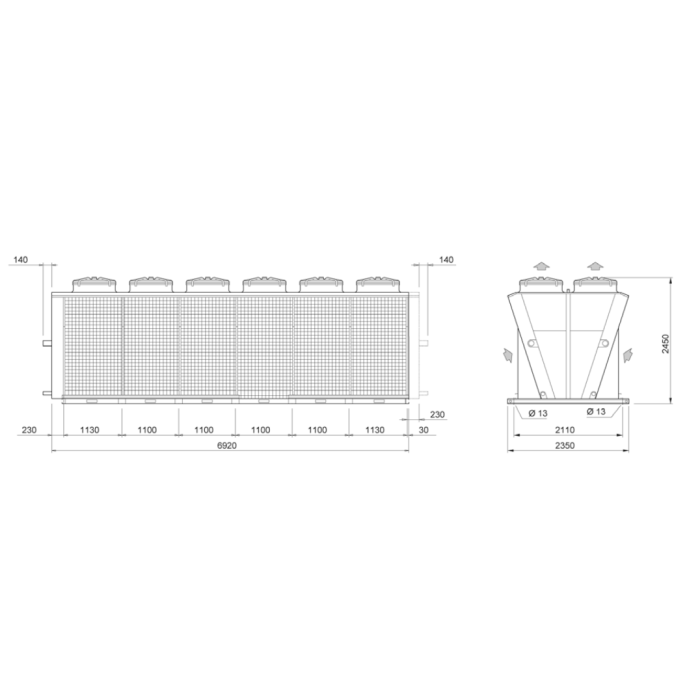

550KW Copper Tube V-type Dry Cooler for Data Center Cooling
This Customized 6 Rows 54 Holes V-type Dry Cooler with 12 AC Fans is provided for Data Center Cooling.
The core construction uses 5/8" Ø15.88*0.45mm Copper Tubes and 0.12mm Acrylic Acid-Coated Hydrophilic Aluminum Fins with Corrosion Protection (FPI 2.1mm). Additionally, the Frames are manufactured out of 3.0mm thick Painted Steel Plate, the mounting brackets and wind panels are constructed using 3.0mm thick outdoor Painted Steel Plate.
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
