BOYI Customized 2500KW Stainless Steel Tube V-type Dry Cooler with Wet Pads for Mining Field
| Share | |
|---|---|
| Categories | Dry Coolers |
| Brand | Boyi Heat Exchanger Custom Manufacturing |
| Model | V-type Dry Cooler |
| Core Component | Finned Tube Heat Exchanger |
| Tube Diameter | 7mm, 9.52mm, 12.7mm, 15.88mm |
| Casing Material | Galvanized Sheet, Aluminium, Stainless Steel |
| Tube Material | Copper, Stainless Steel |
| Fin Material | Aluminum, Copper, Stainless Steel |
| FOB port | guangzhou |
| Terms of Payment | L/C, D/P, Western Union, MoneyGram, T/T, Paypal |
| Download |  |
Detail Information

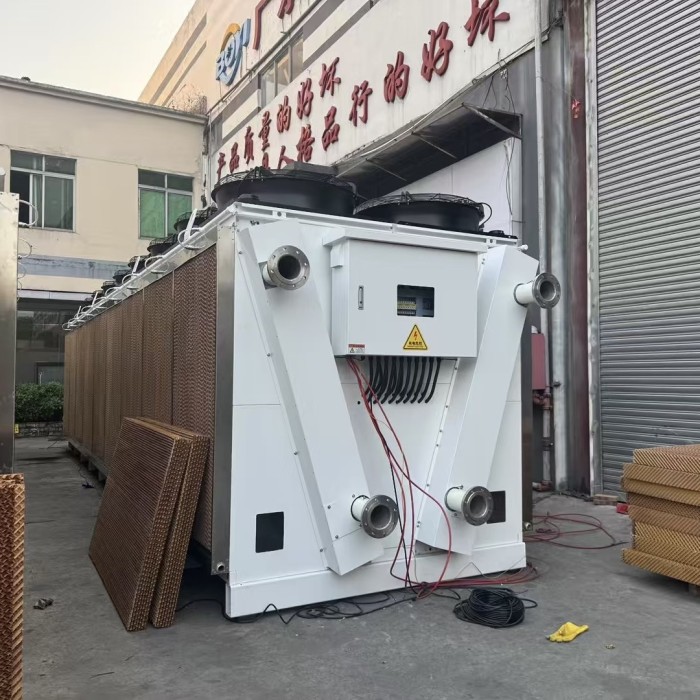

BOYI Customized 2500KW Stainless Steel Tube V-type Dry Cooler with Wet Pads for Mining Field
This Customized 6 Rows 64 Holes V-type Dry Cooler with Wet Pads with 24 Kemao AC Fans is provided for Mining Field.
The core construction uses 5/8" 15.88*0.65mm Stainless Steel Tubes and 0.12mm Hydrophilic Corrugated Aluminum Fins (FPI 2.1mm). Additionally, the Frames are manufactured out of 3.0mm thick Painted Steel Plate, the mounting brackets and wind panels are constructed using 3.0mm thick outdoor Painted Steel Plate.
Key Features:
1、Closed-loop cooling: Prevents contamination and fluid loss.
2、Energy-efficient fans: Reduce operational costs.
3、Environmentally friendly: No water consumption or chemical treatment.
4、Scalable designs: Available in horizontal or vertical configurations.
5、Applications: Suitable for data center, miner field, chemical industry, chillers, compressors, hydraulic systems, and free cooling solutions.
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
