100KW Copper Tube V-type Dry Cooler for Mining Field
| Categories | Dry Coolers |
|---|---|
| Brand | Boyi Heat Exchanger Custom Manufacturing |
| Core Component | Finned Tube Heat Exchanger |
| Tube Diameter | 7mm, 9.52mm, 12.7mm, 15.88mm |
| Casing Material | Galvanized Sheet, Aluminium, Stainless Steel |
| Tube Material | Copper, Stainless Steel |
| Fin Material | Aluminum, Copper, Stainless Steel |
| FOB port | guangzhou |
| Terms of Payment | L/C, D/P, Western Union, MoneyGram, T/T, Paypal |
| Download |  |
| Update Time | Jul 28,2025 |
Detail Information

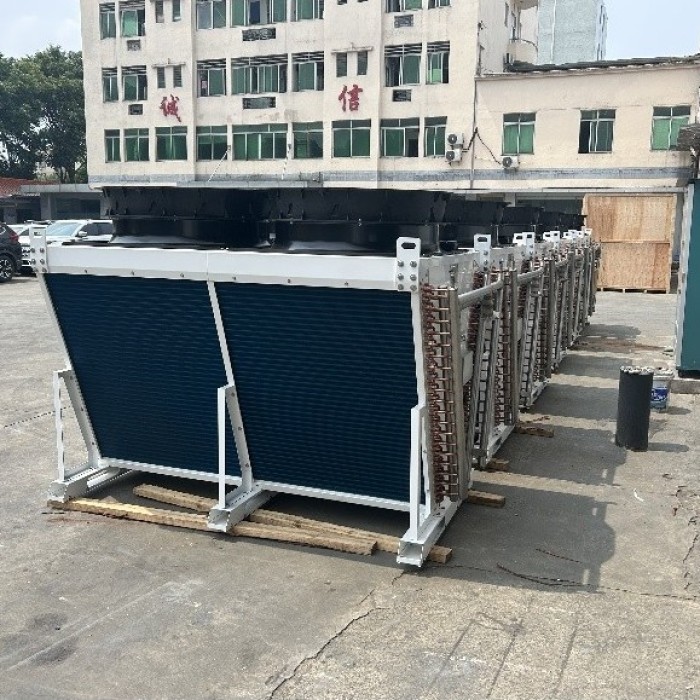

100KW Copper Tube V-type Dry Cooler for Mining Field
This Customized 4 Rows 40 Holes V-type Dry Cooler with 2 EC Fans is provided for Mining Field.
The core construction uses 4/8" 12.7*0.4mm Copper Tubes and 0.115mm Hydrophilic Corrugated Aluminum Fins (FPI 2.3mm). Additionally, the Frames are manufactured out of 1.5mm Galvanized Sheet.
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
