BOYI customized Ø9.52mm IGT copper tube evaporator coils
| Share | |
|---|---|
| Categories | Evaporator Coils |
| Brand | Boyi Heat Exchanger Custom Manufacturing |
| Core Component | Finned Tube Heat Exchanger |
| Tube Diameter | 7mm, 9.52mm, 12.7mm, 15.88mm |
| Casing Material | Galvanized Sheet, Aluminium, Stainless Steel |
| Tube Material | Copper, Stainless Steel |
| Fin Material | Aluminum, Copper, Stainless Steel |
| FOB port | guangzhou |
| Terms of Payment | L/C, D/P, Western Union, MoneyGram, T/T, Paypal |
Detail Information

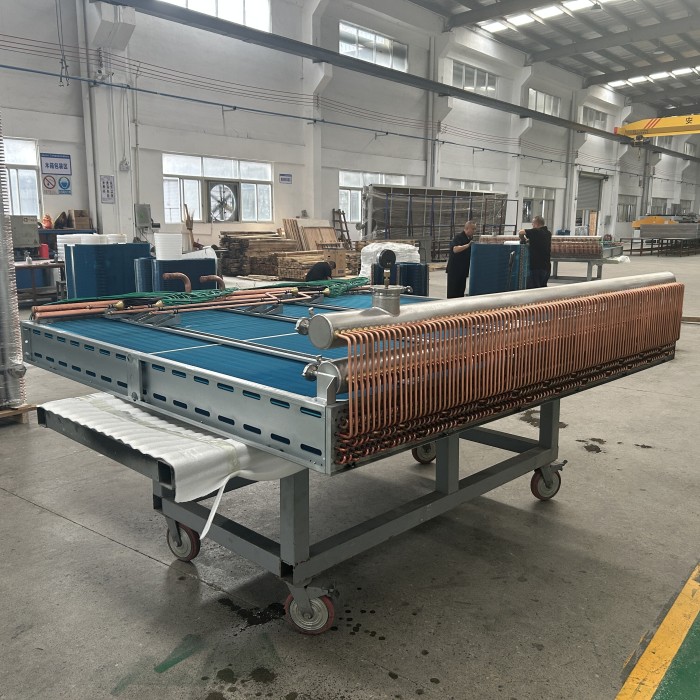

BOYI customized Ø9.52mm IGT copper tube evaporator coils
This customized 8(4+4) Rows 100 Holes 2300mmL finned-tube heat exchanger is Evaporator Coils.
The core construction uses 3/8" Ø9.52*0.27-16mm Copper Tubes and 0.105mm Hydrophilic aluminum Fins (FPI 1.8mm). Row spacing: 21.65mm. Hole spacing: 25mm. Additionally, the Perimeter Frames are manufactured out of 2.0mm thick Galvanized sheet.
A finned evaporator is a heat exchanger where low-pressure liquid refrigerant evaporates inside copper tubes while a fan forces air across closely spaced aluminum fins bonded to the tubes. The fins dramatically enlarge the air-side surface area, compensating for air's poor heat-transfer coefficient, so heat is efficiently absorbed from the air into the boiling refrigerant — cooling and dehumidifying the air stream.
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
