Black epoxy resin aluminum foil condenser
| Share | |
|---|---|
| Categories | Condenser Coils |
| Brand | Boyi Heat Exchanger Custom Manufacturing |
| Core Component | Finned Tube Heat Exchanger |
| Tube Diameter | 7mm, 9.52mm, 12.7mm, 15.88mm |
| Casing Material | Galvanized Sheet, Aluminium, Stainless Steel |
| Tube Material | Copper, Stainless Steel |
| Fin Material | Aluminum, Copper, Stainless Steel |
| FOB port | guangzhou |
| Terms of Payment | L/C, D/P, Western Union, MoneyGram, T/T, Paypal |
Detail Information

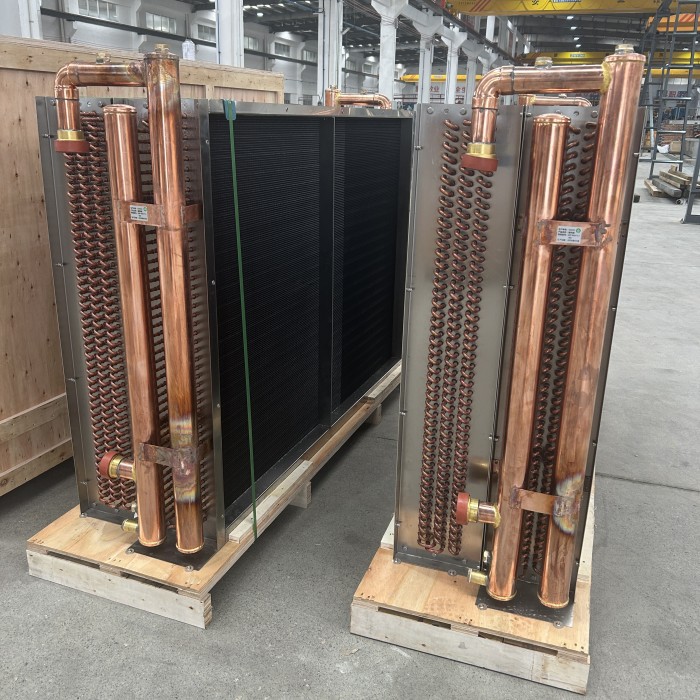

Customized Black epoxy resin aluminum foil Condenser
This Customized 6 Rows 46 Holes 1740mm Condenser uses Black epoxy resin aluminum foil.
The core construction uses 3/8" Ø9.52*0.32mm Copper Tubes and 0.115mm Black epoxy resin aluminum Fins (FPI 2.3mm). Row spacing: 22mm. Hole spacing: 25.4mm. Additionally, the Perimeter Frames are manufactured out of 1.5mm thick #304 stainless steel.
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
