Innovative Commercial and Industrial Heat Transfer Solution Providers
Heat Transfer Solution Mastery

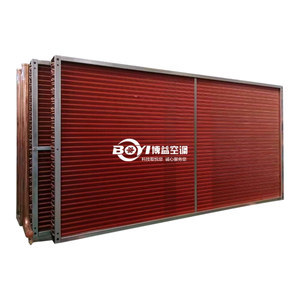

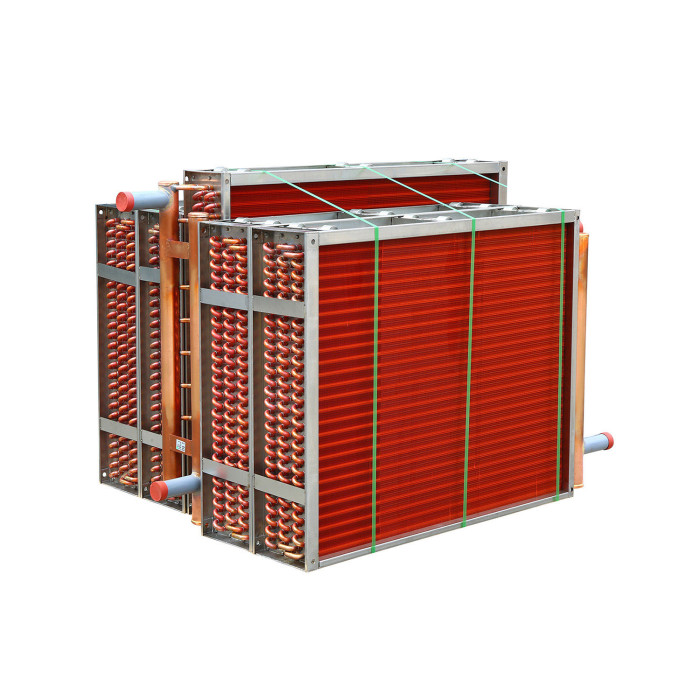

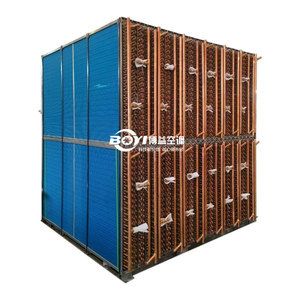

Custom Condenser Coils with different materials
| Categories | Condenser Coils |
|---|---|
| Brand | Boyi Heat transfer industry support customization |
| Model | BY-LNQ |
| Core Component | Finned tube heat exchangers |
| Tube Diameter | 7mm, 9.52mm, 12.7mm, 15.88mm |
| Casing Material | Galvanized Steel, Aluminium, Stainless Steel |
| Tube Material | copper, stainless steel |
| Fin Material | aluminum, copper, stainless steel |
| FOB port | guangzhou |
| Terms of Payment | L/C, D/P, Western Union, MoneyGram, T/T, Paypal |
| Update Time | Jul 1,2025 |
Detail Information
Definition:
A condenser coil is an essential component of any refrigerant system. Its primary functions are to remove heat from the refrigerant and support the conversion of the refrigerant back to a liquid state. Specifically, heat is removed as air passes over top of the coil while an integral or dedicated sub-cooling section directs the conversion of the refrigerant from a gas to a liquid. We’re condenser experts, with many years of experience designing and manufacturing.
Construction Options:
1. Interlaced, multi-circuit
2. Split Face
3. A-Frame
4. Mutli Row
Materials:
1. Aluminum fin
2. Hydrophilic pre-coated aluminum fin
3. Copper tube and fin
4. 304/316 Stainless Steel
5. Epoxy resin coatings
Refrigerant Experience:
1. Pure refrigerants such as R134a, R32 and R1234ze.
2. Refrigerant mixtures including R410A, R407C, R438A, R-454B, and R452A.
3. Supercritical refrigerant CO2.
4. Natural refrigerants such as Propane, Isobutane and Ammonia.
Maintenance & Common Issues:
1. Dirt/Dust Buildup: Reduces efficiency; clean coils annually with a soft brush or coil cleaner.
2. Ice Formation: Caused by low refrigerant, poor airflow, or faulty components. Address promptly to prevent damage.
3. Refrigerant Leaks: Lead to poor cooling; require professional repair.
4. Bent Fins: Restrict airflow; gently straighten with a fin comb.
Conclusion:
Our condenser coils are used in several industries, including gas compression, HVAC, military, transit cooling, refrigerated display cases, data center & electronics cooling, and ground support. No matter what your need, we can custom design an condenser coil for you. Get started with BOYI Coils as your HVAC coils manufacturer today!
- Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.
