Structural parameters: optimization of overall performance
Structural parameters: optimization of overall performance
Structural parameters: optimization of overall performance

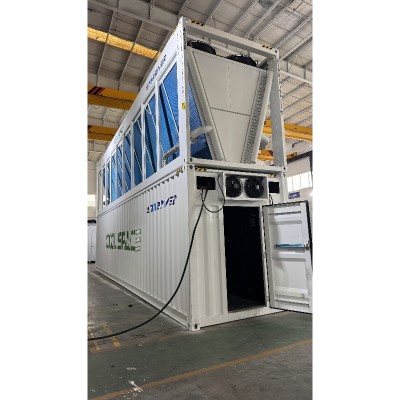

Structural parameters refer to the overall structural design of the heat exchangers, including the arrangement of finned tubes, the design of headers and distributors, etc. A well-designed structure can improve the heat transfer efficiency, reduce pressure drop, and ensure uniform fluid distribution. The following are several key aspects of structural parameters:
1. Arrangement method:
The arrangement of finned tubes mainly includes two types: in-line and staggered. The in-line arrangement offers lower air flow resistance but relatively lower heat transfer efficiency, while the staggered arrangement provides higher heat transfer efficiency but greater air flow resistance. During design, the appropriate arrangement should be selected based on specific working conditions and requirements. For example, in refrigeration systems, evaporators typically adopt the in-line arrangement, whereas condensers use the staggered arrangement to achieve optimal heat transfer performance and energy consumption balance.
2. Header and Liquid Distributor:
Headers and distributors are essential components of heat exchangers. Their role is to evenly distribute the fluid across all the heat exchange tubes, ensuring the heat exchanger's efficiency. A well-designed header and distributor can effectively prevent uneven fluid distribution and enhance the overall performance of the heat exchangers. During the design process, it is necessary to optimize the structure of the headers and distributors based on the fluid's physical properties and heat transfer requirements to ensure uniform fluid distribution.
